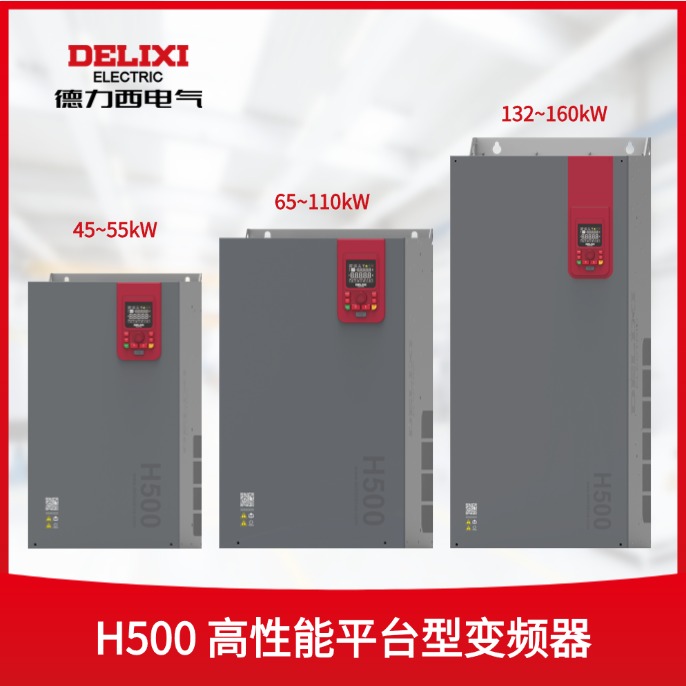

| Item |
Specifications |
| Basic Functions |
Control system |
Current Vector General Purpose Inverter. |
| Compatible motor |
Induction motors. |
| Maximum frequency |
Vector control: 0~500Hz;
V/F control: 0~3200Hz. |
| Carrier frequency |
0.8kHz~12kHz; Depending on load, can automatically adjust. |
| Input resolution |
Digital: 0.01Hz; Analog: maximum frequency×0.1%. |
| Control modes |
Open vector control (SVC);
Closed loop vector control (FVC);
V/F (scalar) control. |
| Starting torque |
G type: 0.5Hz/150% (SVC); 0Hz/180% (FVC).
P type: 0.5Hz/100%. |
| Speed range |
1: 100 (SVC) |
1: 1000 (FVC) |
| Speed accuracy |
±0.5% (SVC) |
±0.02% (FVC) |
| Torque accuracy |
±5% (FVC) |
| Overload capacity |
G type: 150% rated current 60s; 180% rated current 3s;
P type: 120% rated current 60s; 150% rated current 3s. |
| Torque boost |
Automatic |
Manual 0.1%~30.0% |
| V/F curve |
Straight-line V/F curve
Multi-point V/F curve
N-power V/F curve (2-power, 1.4-power, 1.6-power, 1.8-power, 2-power square)
|
| V/F separation |
Two types: complete separation; half separation. AVR output. |
| Ramp mode |
Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time: 0.0-6500.0s |
| DC braking |
DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-36.0s
Braking action current value: 0.0%-100.0% |
| JOG control |
JOG frequency range: 0.00-50.00 Hz
JOG acceleration/deceleration time: 0.0-6500.0s |
| Simple PLC |
Up to 16 speeds via the simple PLC function or DI terminals |
| Onboard PID |
Process-controlled closed loop control system |
Auto voltage
regulation (AVR) |
Keep constant output voltage automatically when grid voltage fluctuates. |
Overvoltage/Overcurrent stall
control |
The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/overcurrent. |
| Fast current limit function |
Protect inverter from overcurrent malfunctions. |
| Torque limit and control |
It can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be implemented in the FVC mode. |
| Stop for a second |
When the instantaneous outage occurs, the voltage is compensated by the load feedback energy to keep the converter running for a short time. |
| Personalization Features |
Fast flow restriction |
Avoiding Frequent Overcurrent Faults in Inverters |
| Timing control |
Time range: 0.0-6500.0 minutes |
| Two-motor switchover |
Two motors can be switched over via two groups of motor parameters. |
| Fieldbuses |
RS485, Profibus-DP, CANlink, CANopen (extension cards needed) |
| Powerful background software |
Supports frequency converter parameter operation and virtual oscilloscope function. Graphic monitoring of internal state of frequency converter can be realized by virtual oscilloscope |
| Operations |
Command source |
Keyboard
Control terminals
Serial communication port
You can perform switchover between these sources in various ways. |
| Frequency source |
11 frequency sources, such as digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting. You can perform switchover between these sources in various ways. |
Auxiliary
frequency source |
11 auxiliary frequency sources. It can implement fine tuning of auxiliary frequency and frequency synthesis. |
| Input terminal |
6 digital input (DI) terminals (DI5 supports up to 100 kHz high-speed pulse input)
3 analog input (AI) terminals which support 0-10 V voltage input or 0-20 mA current input |
| Output terminal |
2 digital output (DO) terminals (FM supports 0-10 kHz square wave signal output)
1 relay output terminal
2 analog output (AO) terminals which support 0-20 mA current output or 0-10 V voltage. |
| Display And Panel |
LED display |
Displays parameters. |
| Key lock |
It can lock the keys partially or completely and define the function range of some keys so as to prevent misconducts. |
| Protection functions |
Motor short-circuit detection at power-on, input/output phase loss protection, overcurrent protection, overvoltage protection, under voltage protection, overheat protection and overload protection. |
| Optional parts |
PG card, brake unit, RS485 card, CAN card, Profibus-DP card. |
| Environment |
Location |
Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude |
Less than 1000m. |
| Ambient temperature |
-10°C to +40°C (de-rated if the ambient temperature is between 40°C and 50°C) |
| Humidity |
Less than 95%RH, without condensing |
| Vibration |
Less than 5.9m/s2 (0.6g). |
| Storage temperature |
-20ºC~+60ºC. |
